Cartridge Seals
Seal Art India Pvt. Ltd. has a variety of Mechanical Seals including Cartridge Seals which are categorized as follows:-
- SINGLE SEALS
- Single Spring Seals
- DOUBLE SEALS
- Multi Spring Seals
- Metal Bellow Seals

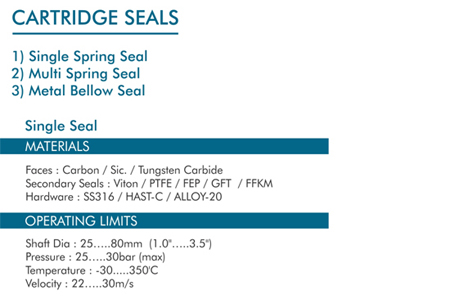

Seal Art Single Seals
Faces : Carbon / Sic. / Tungsten Carbide
Bellow Material : AM350
Secondary Seals : Viton / Aflas / FEP / PTFE / FFKM
Hardware : SS316 / Carpenter-42
Shaft Dia : 18.0mm...100.0mm 3/4"...4.0"
Pressure : 6.0bar (max...)
Temprature : -45'C TO 120'C
Velocity : 20.0m/s

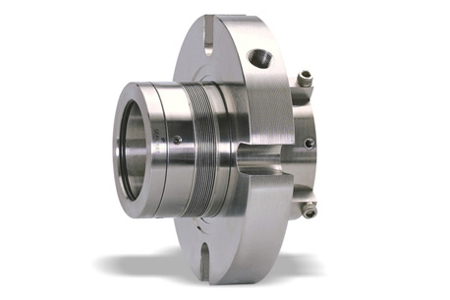

Single Slurry Cartridge Seal is as cartridge unit specially design for slurry applications. This seal is perfect for using in such abrasive and rugged media. Further, this range is widely used in various industries for different applications. A self contained unit consisting of a single seal assembly, mating ring, gland, sleeve, etc., which is pre-assembled and preset by the manufacturer prior to installation. Asuperior upgrade to component seals in both time saved and installation errors avoided.

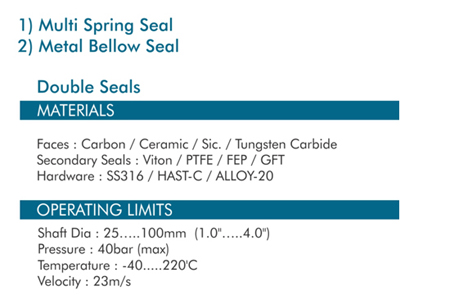

Seal Art Double Seals
Faces : Carbon / Sic. / Tungsten Carbide
Bellow Material : AM350
Secondary Seals : Viton / Aflas / FEP / PTFE / Grafoil
Hardware : SS316 / Carpenter-42
Shaft Dia : 18.0mm...100.0mm 3/4"...4.0"
Pressure : 6.0bar (max...)
Temprature : -45'C TO 120'C
Velocity : 20.0m/s

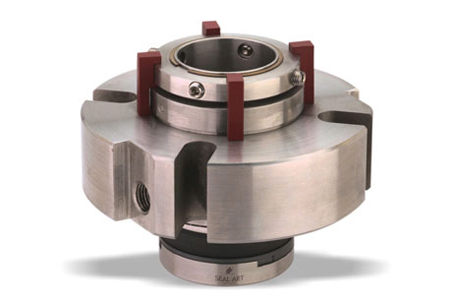

Double Slurry Cartridge Seal is a factory assembled double Cartridge Mechanical Seal as cartridge unit specially design for slurry & viscous media. Also, this seal can be easily assembled in the equipment without need of any specific measurements. A self contained unit consisting of a Double seal assembly, mating ring, gland, sleeve, etc., which is pre-assembled and preset by the manufacturer prior to installation. Asuperior upgrade to component seals in both time saved and installation errors avoided.
