Seal Support System
Seal Art India Pvt. Ltd. has a variety of models for the standerdized and customized Seal Support System as per industry requirement,
following are some of them.

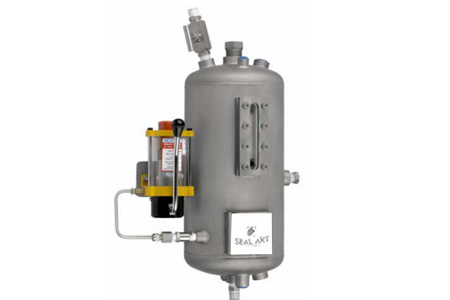

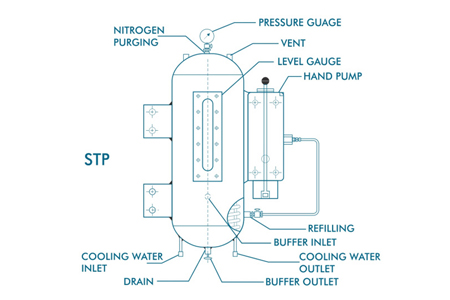

THERMOSYPHON POT
Thermosyphon seal pots can be supplied as per API 610 specifications.
Series STS is basicaly used as a storage & pressurising unit. This is used for double mechanical seals in back to back or tandem seal arrangement to provide necessary lubrication and cooling to the seal faces to achive recommended seal life. This is equipped with cooling coil inside the shell to bring down the temperature of barrier fluid coming fromseal to Thermosyphon.
Shaft Dia : 18…..100mm 3/4"…..4.0"
Pressure : 6bar (max)
Temprature : -45 TO 120'C
Velocity : 20m/s
Thermosyphon seal pots can be supplied as per API 610 specifications.
Series STS is basicaly used as a storage & pressurising unit. This is used for double mechanical seals in back to back or tandem seal arrangement to provide necessary lubrication and cooling to the seal faces to achive recommended seal life. This is equipped with cooling coil inside the shell to bring down the temperature of barrier fluid coming fromseal to Thermosyphon.

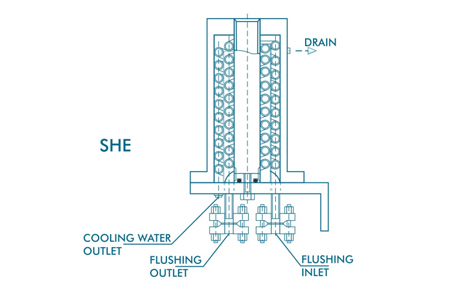

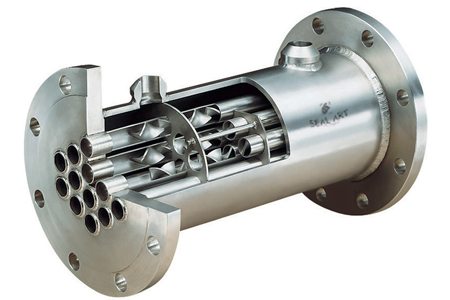

HEAT EXCHANGER
Heat exchanger can be supplied as per API Plans 21, 23, 41.
Heat Exchanger offered find application in flushing of seal chamber with reduced temperature and supported by cooling coil, it assists in bringing noticeable reduction to temperatures as well as at the same time also providing vital contribution in maintaining sealing chamber temperatures to a low level.
Shaft Dia : 18…..100mm 3/4"…..4.0"
Pressure : 6bar (max)
Temprature : -45 TO 120'C
Velocity : 20m/s
Heat exchanger can be supplied as per API Plans 21, 23, 41.
Heat Exchanger offered find application in flushing of seal chamber with reduced temperature and supported by cooling coil, it assists in bringing noticeable reduction to temperatures as well as at the same time also providing vital contribution in maintaining sealing chamber temperatures to a low level.

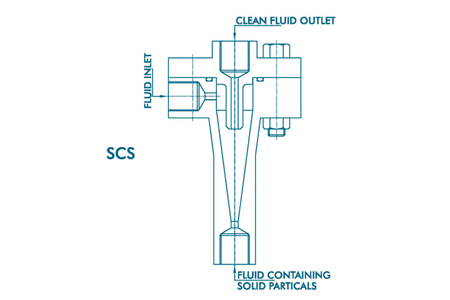

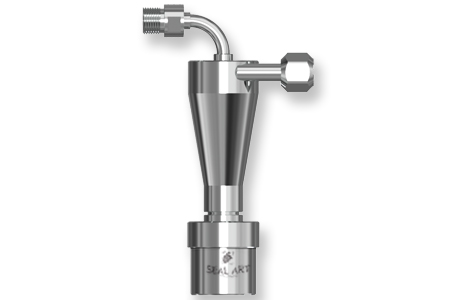

CYCLONE SEPARATOR
Cyclone Separator are designed for removing dirt, sand and solid particles from injection flow to mechanical seal. The separation is obtained by centrifugal force generated by differential pressure across the cyclone.
Shaft Dia : 18…..100mm 3/4"…..4.0"
Pressure : 6bar (max)
Temprature : -45 TO 120'C
Velocity : 20m/s
Cyclone Separator are designed for removing dirt, sand and solid particles from injection flow to mechanical seal. The separation is obtained by centrifugal force generated by differential pressure across the cyclone.
